GuardianUTM: Datasheet



Updated 1023.


Read a PDF version of our datasheet

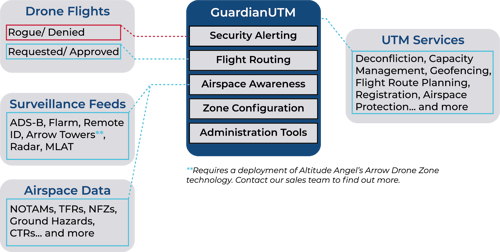

Guardian datasheet resources graphic
Scalable airspace management solution


Summary:

GuardianUTM™ is an intuitive, cost-effective solution for providing a consolidated integrated airspace view. The solution gives greater situational awareness and the ability to manage flight plans and access for unmanned aerial vehicles (UAVs), enabling the airspace to be opened to more flights as UAV-use continues to increase.


Hosted on a secure and stable cloud environment, GuardianUTM™ is rapidly deployable and configurable by organisations of any size; providing a flexible platform for enabling UAVs to be safely integrated for greater operational control and unlocking a wide variety of use-cases.



Highly configurable

GuardianUTM™ gives managers of airspace, whether this be around airports, property or other infrastructure, the ability to easily provide digital approval to drone operators within defined airspace zones. Offering high levels of automation, including routing and approvals of certified operations, keeping costs down. The solution is also able to integrate with aerial surveillance equipment as required.

Easy to use

Designed to quickly and easily give an overview of the sky around your enterprise location, GuardianUTM™ features a simple, easy-to-use interface, which requires minimal training, and no additional on-site hardware to be deployed. An intuitive top-down view allows users to clearly distinguish authorised and unauthorised drones in real-time and take appropriate actions.

A broader airspace economy

One of the key challenges is funding the work of reviewing and approving drone flights in restricted airspace. GuardianUTM™ solves this problem by welcoming drone operators into the wider airspace economy, with Approval Service fees. Ensuring those who benefit from opening up restricted airspace contribute towards keeping it safe.

Constantly evolving

Cloud-based infrastructure allows GuardianUTM™ to continuously update with the latest and most accurate aeronautical data available. The platform offers unlimited scalability, able to respond to growing numbers of drone flights or increased areas of responsibility. Whilst our approval workflows can automate common tasks, enabling scalable drone operations by minimising manual processes.

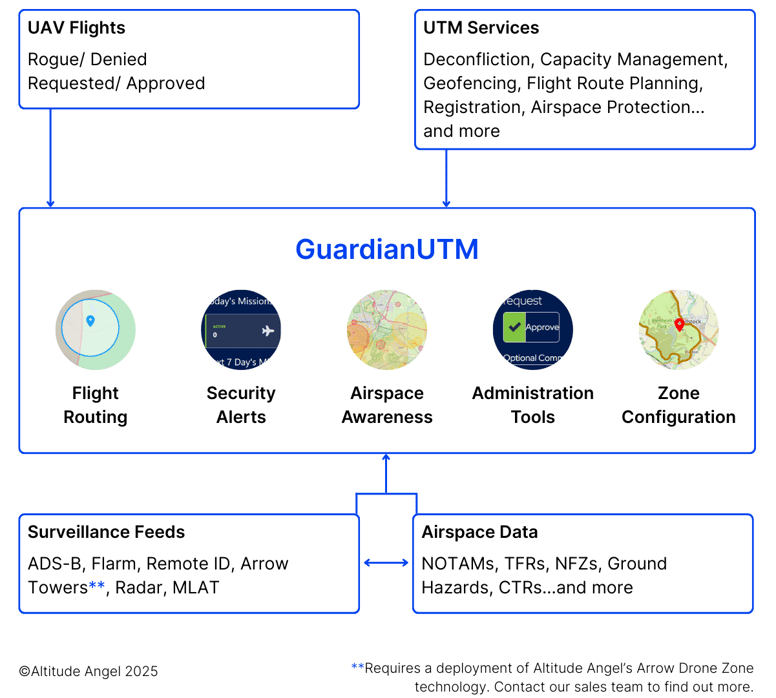

Guardianutm datasheet diagram


Safety through situational awareness

GuardianUTM™ provides a single source-of-truth which provides a moment- to-moment situational awareness of airspace regions, enabling direct engagement with approved drone operations, and quick identification of rogue incursions from unidentified aircraft. This helps ensure drones and other airspace users are safely managed and deconflicted, contributing to safer, more efficient operations.

Accessible anywhere, online always

As a cloud-based SaaS solution, GuardianUTM™ provides remote-access everywhere. Users may approve, reject or amend flights within pre-defined ‘zones’ from anywhere in the world, through a secure online platform. The solution also enables airspace managers to directly interface with drone operators mid-flight, allowing them to declare emergencies or request immediate landing of drones.

Enable the skies of tomorrow, today

GuardianUTM™ gives organisations the ability to offer drone operators critical safety features and priority access to airspace for commercial purposes. Through a central access platform connected to Altitude Angel’s comprehensive global UTM network, organisations can be ready as drone use increases by directly accessing Altitude Angel’s unrivalled deconfliction services and AI-guided routing of aircraft to support highly-automated flights.



SLA-Assured

Supported by a guaranteed SLA of 99.95% uptime.

Integration Agnostic

GuardianUTM Cloud surveillance API readily integrates with 3rd party systems.

Hosting

Microsoft Azure cloud; deployable to additional regions if needed. Further information here.

Security

SSO-enabled login, MFA and comprehensive user-management tools.

Real-time data feeds

Data displayed through GuardianUTM is received directly from Altitude Angel’s suite of rest-based APIs which aggregate the most accurate data available to industry and deliver them directly into the solution.

C-UAS Compatibility

DJI AeroScope*, Involi*, Droniq*, uAvionix*, Asterix CAT48, Asterix CAT62, Asterix CAT21, FRQ smartSIS, Dedrone*, Senhive Sen-ID+, DroneShield (others available on request).

Surveillance & Telemetry Integration

ADS-B (including CAT21), Radar* (including CAT48, CAT62), MLAT, FLARM, RF, Optical, Lidar, GCS, On- board Trackers.



*Previous integration with.



GuardianUTM in brief:

  • Provides an end to end solution for drone operations, supporting the creation and submission of flight plans through to review, approval and collection of Approval Service fees all on a single platform.

  • Reduces operational expenditure and training burden by increasing efficiency cost-effectively.

  • A single cloud-based platform ensures the platform is able to be deployed live from day one and anywhere in the world.

  • Contributes to existing drone management strategies, protecting from costly disruption by quickly distinguishing unauthorised drones from approved operations.

  • Provides increased overview of drones through an intuitive visual user interface.

  • Able to automatically approve drone operations using automated approval workflows, in lower risk environments, reducing costs while letting you focus on what’s important.

  • Delivers uncompromising safety features and next-generation drone-services functionality through Altitude Angel’s world-leading UTM



Explore our website to learn more about GuardianUTM, or complete our contact form to speak to a member of the team.
